Venafi Onboarding

Jun 02, 2025

Scott Birl

Information Technology Services

About This Documentation

The latest version of this document can be found here: https://sites.temple.edu/Venafi_onboarding.html and is updated periodically.

This document should be accessible by anyone. Feel free to offer up suggestions, comments, etc. about this documentation if it’s confusing, seems out of order, missing troubleshooting information, or for any reason.

Document scope

The scope of this document is to cover how to order and organize certificates in Venafi. The prerequisite is that you already know how your web application and/or web server works to generate the required Certificate Signing Request (CSR).

Questions regarding the processes leading up to placing an order (e.g.: generating the CSR) or how to install the certificate once it is available are outside the scope of this document.

Contact Information

PLEASE do NOT contact any one individual person on the Certificates Team, as this can hinder the response time if that individual is out of office.

The email address for the Certificates Team is: certificates@temple.edu. Please follow-up any email with a Remedy/Helix request. We also have a channel in Slack, #help-certificates for a more immediate response during normal business hours.

Support

Assistance can still be provided even if you have vendor support for your web application or web server. If you have no support from a vendor, please do not hesitate to contact us and we’ll do our best to assist.

If you are a new account

If you are new to Venafi and this is your first time logging in, please include what department you are with when you contact us so that you can be assigned to the appropriate group within Venafi. There are approximately 2000 certificates for the University, I doubt you want to see them all.

Status updates

There are three ways to obtain status updates about events happening in both Venafi and our Certificate Authority, GlobalSign:

https://status.venafi.cloud/ and https://status.globalsign.com/. Notifications from these official websites should be replicated to:
#help-certificates in Slack and
Microsoft Teams

Venafi Overview

Venafi is a company that allow us to manage certificates from multiple Certificate Authorities in one location. Our portal to Venafi is located at:

https://temple.venafi.cloud/

and uses Single Sign On (SSO) with your regular AccessNet account. Upon logging in for the very first time you’ll see the following box from Microsoft Azure. Please accept the request. It is only asked once.

Azure login screen.

Regarding accounts

Currently, accounts cannot be deleted, at least, by anyone from the University. They can be disabled and if they are, we will change the User Role back to Guest.

User Roles

These are pre-defined roles that Venafi has available to us:

Guest

All new users are given this role by default.
Guests have limited access to specific content on the website: Dashboard, Inventory, Applications and Settings.
Guests cannot request certificates, however they can download certificates.

Resource Owner

A Resource Owner has a few more permissions than a Guest does, particularly the ability to request certificates.
Most end-users will be assigned this Role.

Platform Administrator

This role is similar to the Resource Owner but applies to Venafi Kubernetes clusters, which we do not run.

PKI Administrator

Users in this role can perform a lot more tasks, including configuring Applications and Templates or updating Certificate Authorities.
These users cannot manage other Users’ Roles, or disable accounts.
This Role is restricted to select ITS personnel.

System Administrator

These users have all the privileges that Venafi grants to us, including the ability to manage our own Users and SSO settings.
This Role is restricted to select ITS personnel.

Official documentation: https://docs.venafi.cloud/vaas/user-management/about-user-roles/.

Role Table

This table does not distinguish between READ-ONLY versus WRITE access.

Tab	sub-Tab	Guest	Resource Owner	Platform Administrator	PKI Administrator	System Administrator
Create	Certificate Request	No	Yes	Yes	Yes	Yes
Dashboard	-	Yes	Yes	Yes	Yes	Yes
Applications	-	Yes	Yes	Yes	Yes	Yes
Inventory	Certificate Requests	No	Yes	Yes	Yes	Yes
	Certificates	Yes	Yes	Yes	Yes	Yes
	Certificates Next Gen	Yes	Yes	Yes	Yes	Yes
	TLS Server Endpoints	Yes	Yes	Yes	Yes	Yes
	Trusted CA Certificates	Yes	Yes	Yes	Yes	Yes
Installations	Kubernetes Clusters	Yes	Yes	Yes	Yes	Yes
Policies	Approval Rules	No	No	Yes	Yes	Yes
	Certificate Lifecycle	No	No	No	Yes	Yes
	Issuing Templates	Yes	Yes	Yes	Yes	Yes
Integrations	Certificate Authorities	No	No	No	Yes	Yes
Integrations	Notification Providers	Yes	Yes	Yes	Yes	Yes
Configurations	Network Discovery	No	No	Yes	Yes	Yes
	Tags	No	No	Yes	Yes	Yes
	vSatellites	No	No	No	Yes	Yes
Settings	Event Log	No	Yes	Yes	Yes	Yes
	Licensing	Yes	Yes	Yes	Yes	Yes
	Service Accounts	Yes	Yes	Yes	Yes	Yes
	Services	No	No	No	Yes	Yes
	Single Sign-On	No	No	No	No	Yes
	Teams	Yes	Yes	Yes	Yes	Yes
	Users	Yes	Yes	Yes	Yes	Yes

The Venafi website

The following sections are arranged according to layout of the website.

Create

Certificate Request

You can submit a new Certificate Signing Request (CSR) for an Application that you are associated with.

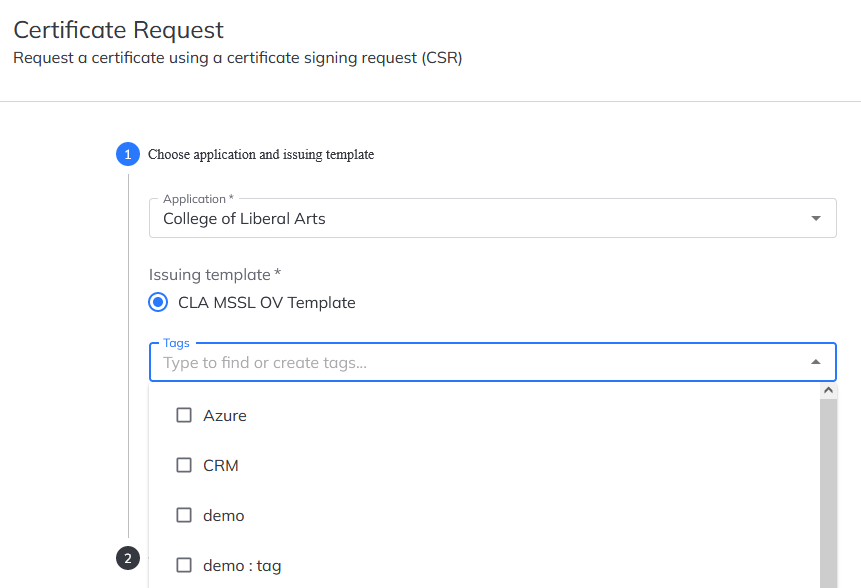

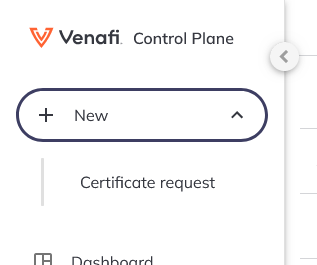

Requesting a new certificiate.

Select the appropriate Application and Issuing Template. (Most users will only see one of each). Also, please feel free to make use of the tags as a mnemonic for areas to apply the certificate.

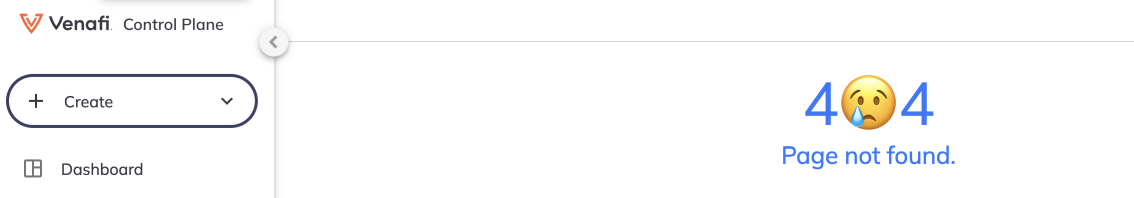

NOTE: If you find that there are no Applications to choose from, it could be that there is no Issuing Templates associated with your Application. Please notify the Certificates Team.

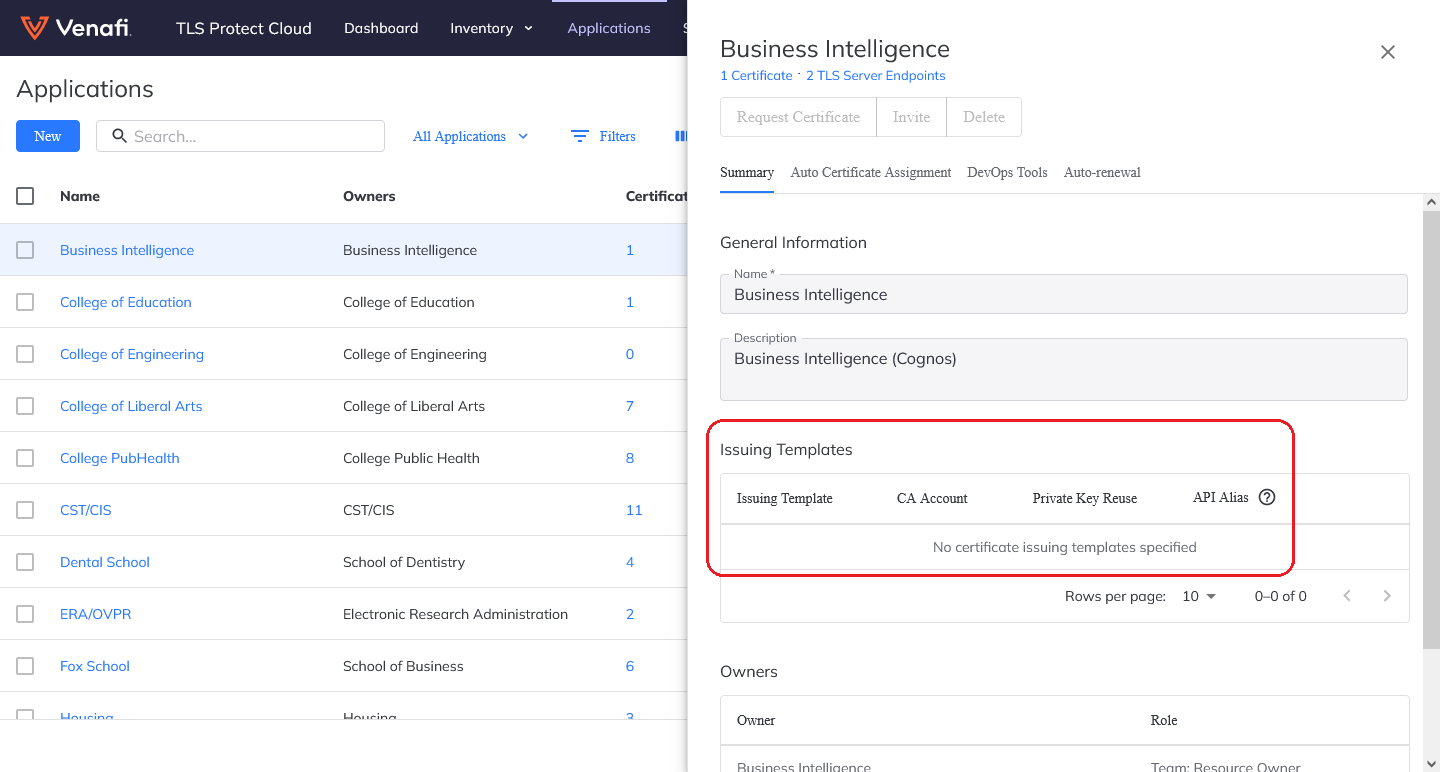

The Issuing Template associated with an Application.

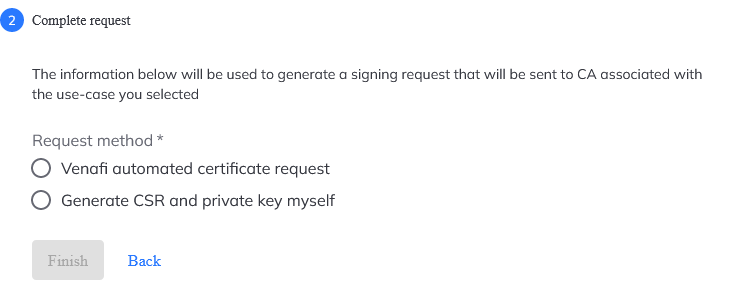

It is recommended that you choose "Venafi automated certificate request".

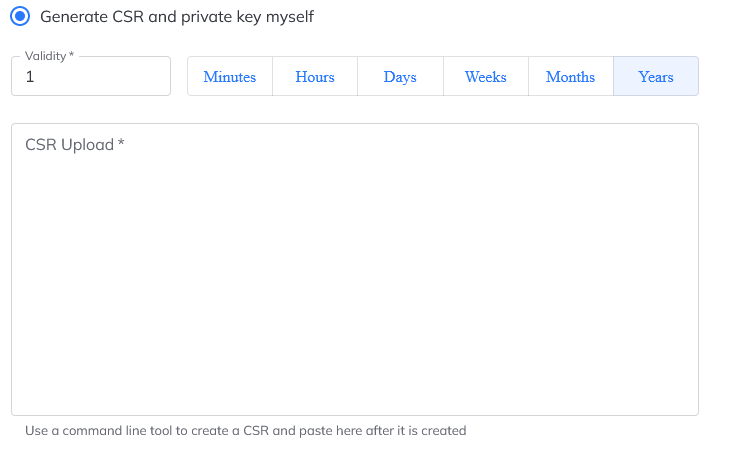

Using your own Certificate Signing Request (CSR)

The maximum validity that can be used is the default shown: 1 year.
Paste the contents of your CSR file into the box.
If you do not know how to create a CSR, then it would better to let Venafi do it for you.
If you want or need to have additional hostnames attached to the same certificate, then choose "Yes, add DNS SANs to CSR" then supply the additional hostnames in the following field.

Using the Venafi automated certificate request

A lot of these fields are pre-populated for your convenience.

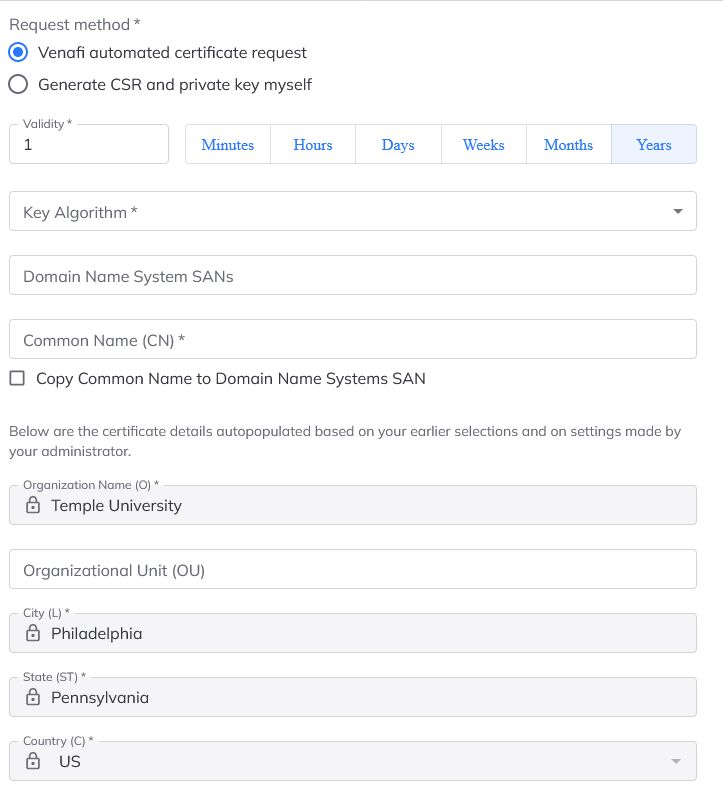

Using the Automated Certificate Request.

The maximum validity that can be used is the default shown: 1 year.
The required key algorithm can be anything your web server supports, but if you're uncertain stick with one of the RSA keys.
Note, that GlobalSign does not support EC ED25519.

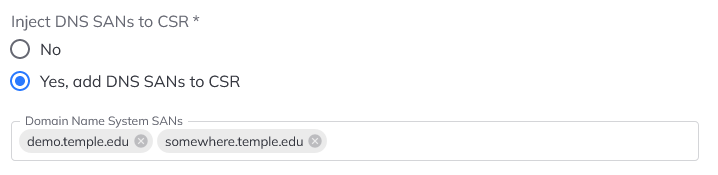

"Domain Name System SANs" is an optional field that can be used add Subject Alternative Names (SANs) in addition to the Common Name (CN).
One such example is if your Common Name is server.temple.edu but you also need server.tu.temple.edu.
The required Common Name (CN) is for the name of the server that the certificate will use.
If your website is server.temple.edu, then that is your Common Name.
If you need additional server names added to your certificate, please use SANs field directly above it.
Uncheck the box that reads "Copy Common Name to Domain Name Systems SAN". GlobalSign will not duplicate the CN into a SAN, and it is possible that GlobalSign will not process your certificate if it cannot remove the duplicate.

Once these fields have been filled in, click Submit Request.

Your request has now been submitted to the Certificate Authority for processing and you should be redirected to the Certificate Requests page.
Also see Regarding our Certificate Authority about the time it takes to process and receive the certificate.

Dashboard

The dashboard is the landing page all users see upon successfully signing into the website.

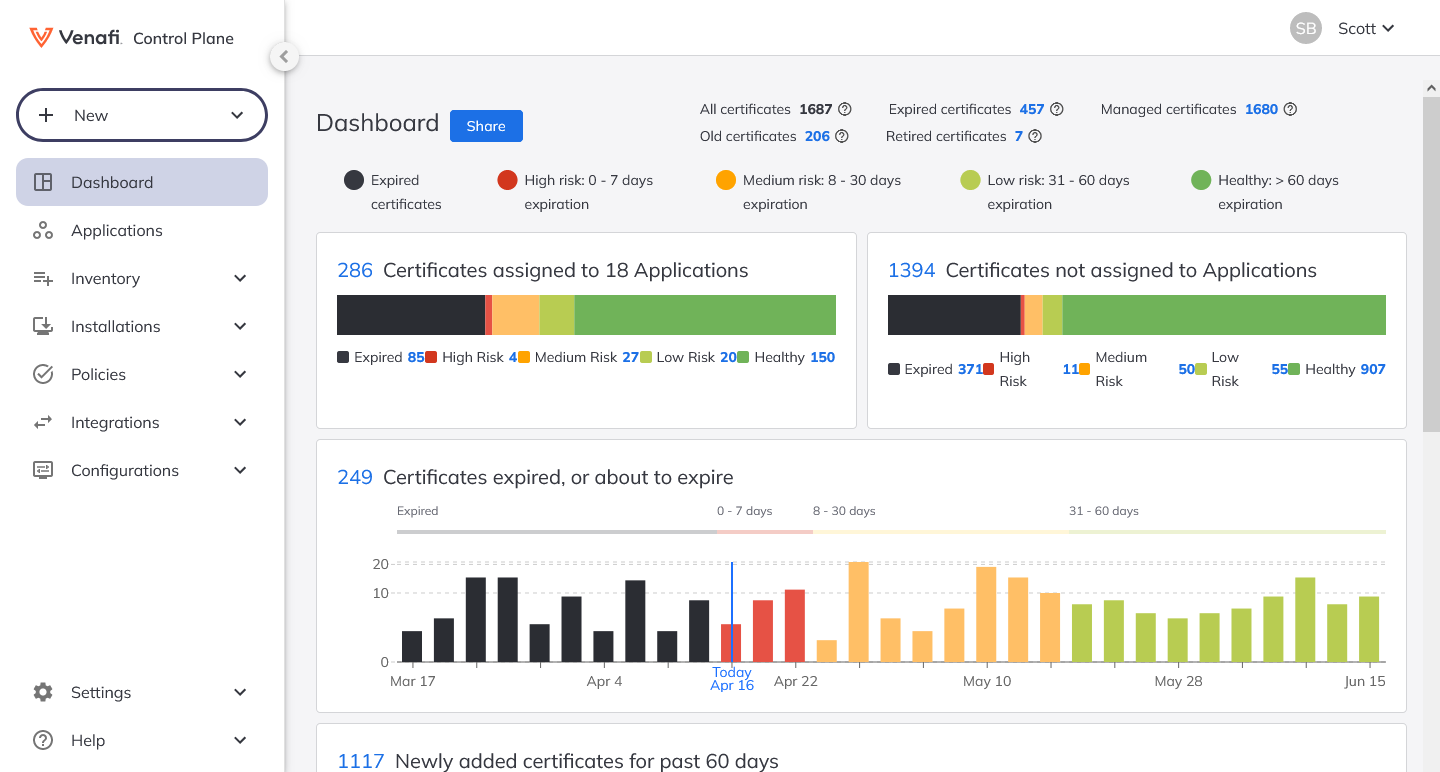

Venafi Dashboard.

There are a lot of links on this page: the blue numbers, the bar graphs, and more. They all lead to the same destination: Inventory, where the only difference is what filters are applied based on what you click.

Click on the Share button to auto-download a PDF screenshot of this dashboard.

Applications

The term "Application" is an overloaded word and should not be confused with the application you run your website from.

This section has been manually laid out to represent the Departments, Schools and Colleges that have certificates.

By clicking on an application name, you can find out what Issuing Templates are in effect. When you click on the number of certificates issued, you will see a filtered inventory list of those certificates. Finally, clicking on the "TLS Server Endpoints", you will have a more focused view of the certificates for that application.

NOTE: There should be no need to create your own Application.

By default, any non-Guest can create an Application, however, we do not recommend creating your own Applications.

Despite not being marked as a required field, an association with an Issuing Template is the only way to create an application, and Issuing Templates can only be created by a System Administrator. Issuing Templates, like Applications, are specific to the Departments, Schools and Colleges.

Inventory

Everyone, regardless of User Role, can access this page and download certificates. However, not everyone will be able to perform some of the other functions listed below.

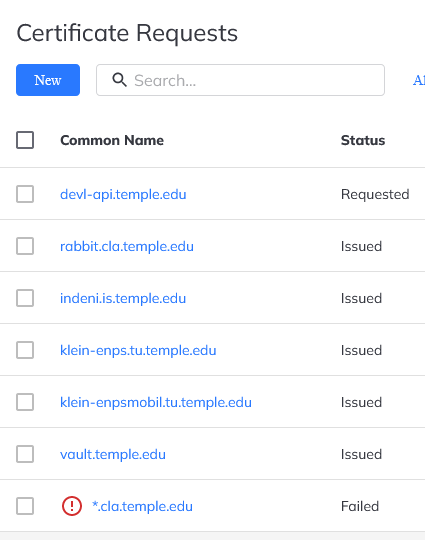

Certificate Requests

From this page you can view all certificates that you have requested or submit a new Certificate Signing Request. By clicking on a hostname, you can also download the certificate after clicking View Certificate.

NOTE: One thing that the Venafi website cannot do is add, remove or update Subject Alternative Names (SANs) to an existing certificate.

Certificates

This page is the place to find, assign, download, renew, retire, or tag any certificate that belongs to an Application that you are a member of. If you find a certificate that is not associated with an Application that you are a member of, then other options will be greyed out.

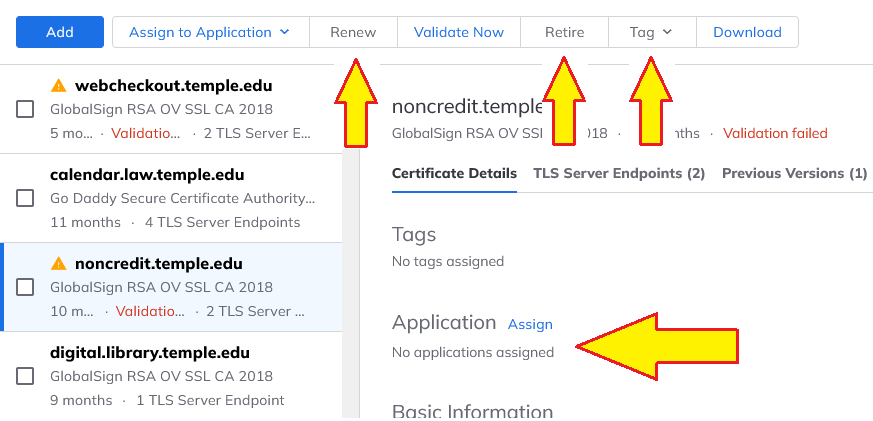

A certificte that is not assigned.

A certificate that is not assigned to an Application (above) versus a certificate that is assigned to an Application that you are a member of (below).

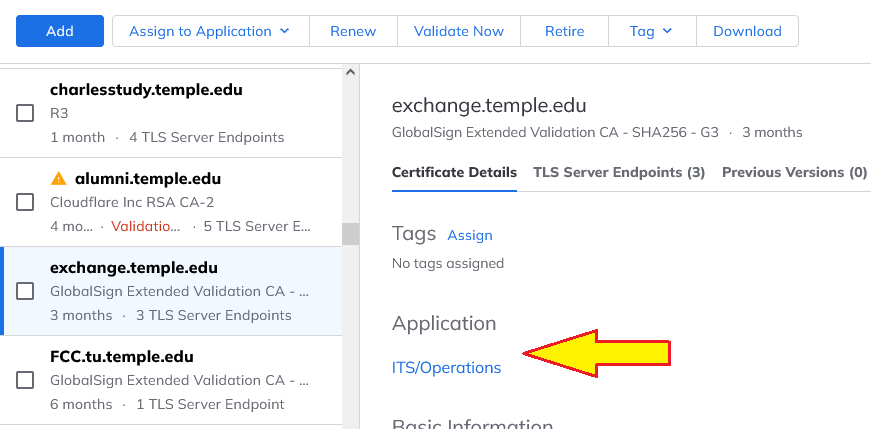

A certificte that is assigned.

Assign to Application

Assigning a certificate to an Application allows for better organization and for more self-service related options. Applications are discussed elsewhere in the document. Certificates not assigned to an Application cannot be renewed.

NOTE: If you are not in the Guest role and you find that your certificate has not been assigned to an Application, you can do the assignment yourself.

To assign a certificate to an application, simply click on the certificate and choose "Assign" from the Assign to Application drop-down.

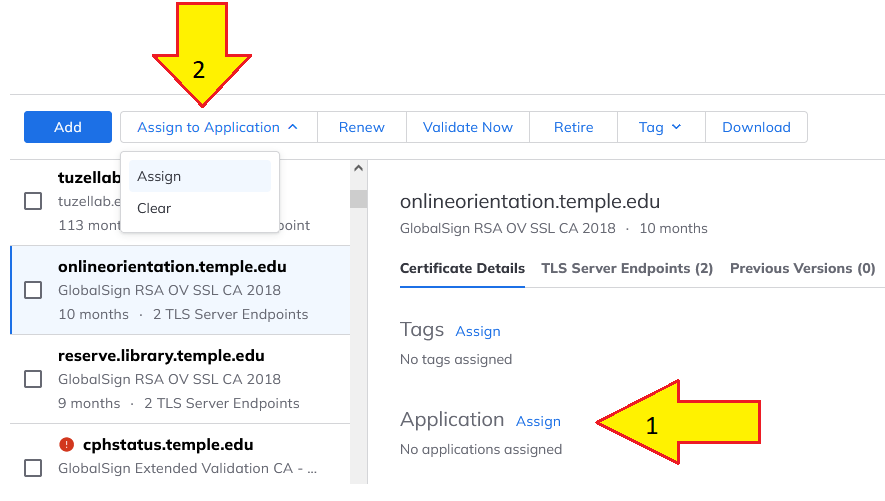

How to assign a certificate to an Application.

How to assign a certificate to an Application.

If a certificate has already been assigned to an Application and you feel this is an error, please contact us to have the Certificates Team correct this.

Renew

Certificates that are assigned to an Application you are a member of can be renewed with this option. If this option is disabled (greyed out/grayed out), then you must first assign to an Application.

NOTE: Renewing a certificate does require that an Issuing Templates be associated with the Application, so if you find that you cannot satisfy the first requirement of selecting an Application, please contact us.

To renew a certificate, click on certificate on the left side, and then choose Renew from the list of options. If your certificate has SANs, please double-check the list of Subject Alternative Names prior to the renewal process. If you renew an older cert that has the incorrect SANs, it will only cause problems down the road. We strongly recommend that older certificates should be retired.

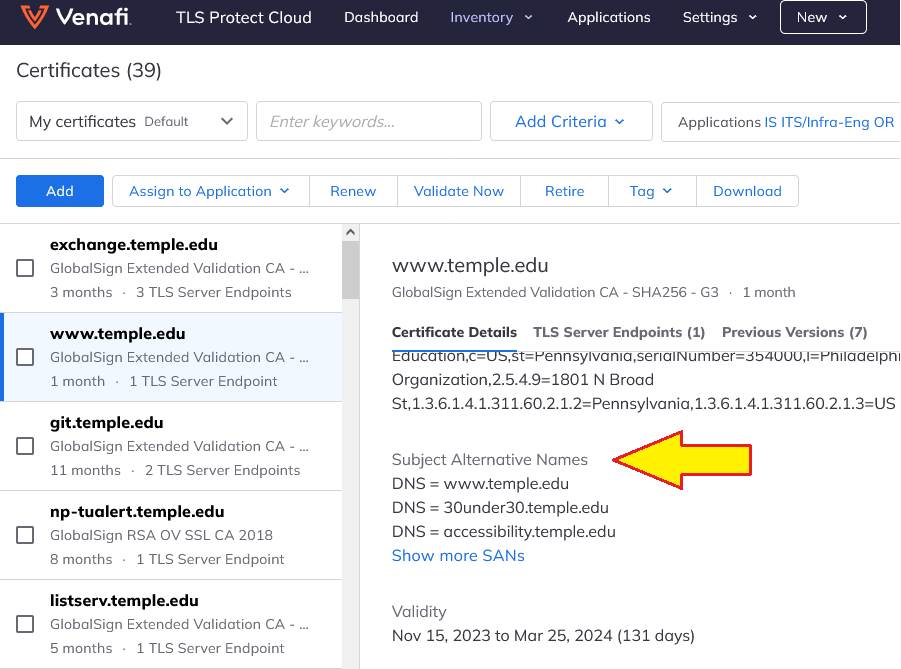

Where to find current SANs.

Please refer to Certificate Request for more information about to proceed with renewing your certificate.

Validate Now

Clicking on the Validate Now button will check the validity of a certificate from a web browser’s perspective. This is useful to see if Certificate Authority's chain (e.g.: Root or Intermediary Certificates) is complete or even trusted. The results of "Validate Now" can be found under "Inventory" -> "TLS Server Endpoints".

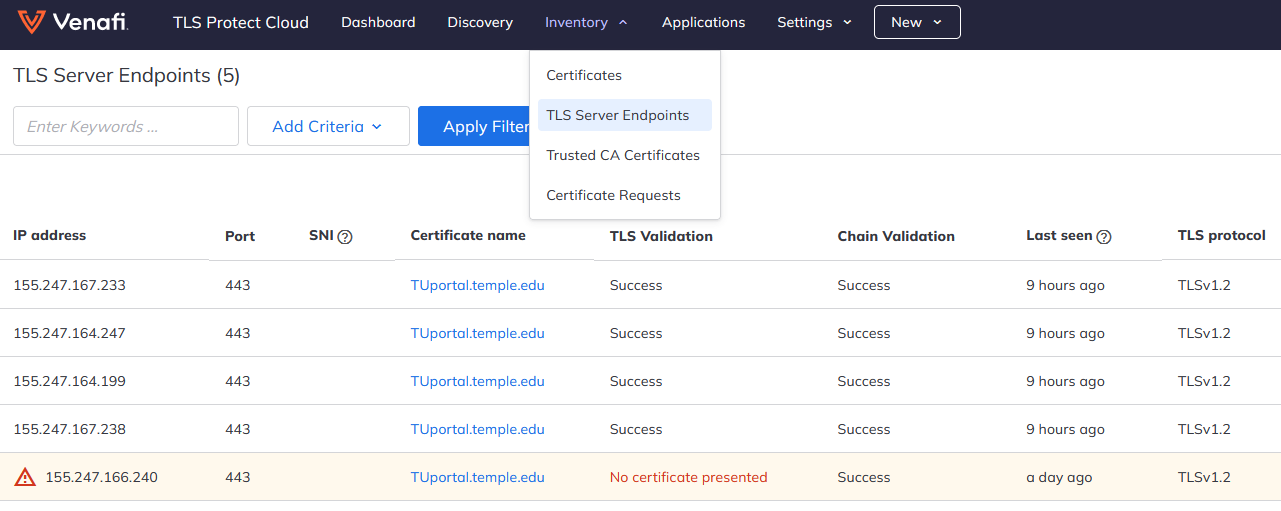

Menu to 'TLS Server Endpoints'

Some validation errors, such as "Chain not trusted" or "Incomplete chain" can be fixed by re-downloading the certificate along with its certificate chain, the Intermediary and Root certificates. See the Download section for more information.

Other errors maybe false-positives or temporary issues, e.g.: "Unexpected certificate", "No certificate presented". If you know your website is not working as expected then you should investigate further, otherwise the error might be a fluke.

"Old certification version" messages are an indication that you should either renew or retire the certificate.

Official documentation: https://docs.venafi.cloud/vaas/c-validating-certificates/.

Retire

Retiring a certificate removes it from the Inventory. It does not invalidate the certificate in any way (e.g. affect websites). Certificates that are 35 days past their expiration date should auto-retire on their own.
It is important to retire certificates so that you do not mistakenly choose an older version to renew. For example, an older version of a certificate might still be valid but had changes made to Subject Alternative Names.

Taking a certificate out of retirement

To remove a certificate from retirement, go back to the Dashboard. At the top of the screen is "Retired certificates". Click on the blue number.

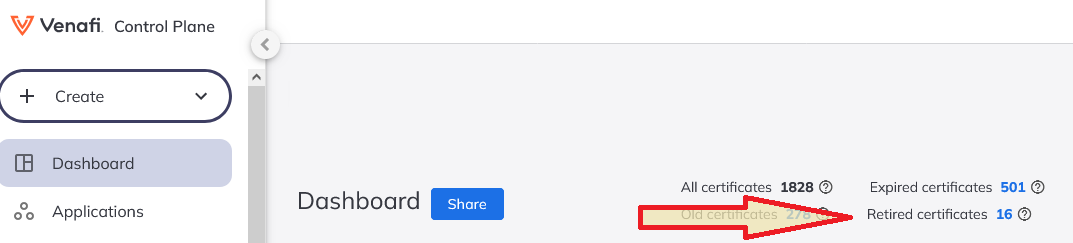

Taking a certificate out of retirement.

Find the certificate that you wish to pull out of retirement and click on the Recover button. You can keep the previous Application assignment or change it before clicking on Recover again. Once recovered you can find the certificate under Inventory.

Tag

Updating tags allows for better organization, e.g.: Azure, F5, HIPPA, etc. Use them how you see fit but note that tags are public in our tenant; there are no private tags. Also, please type carefully as tags can only be deleted, not renamed.

Download

NOTE: If you are not in the System Administrator Role or not a member of the Applications the certificate is assigned to, then you’ll only be able to download the certificate but not the private key.

To download, highlight the certificate you want and click the Download button.

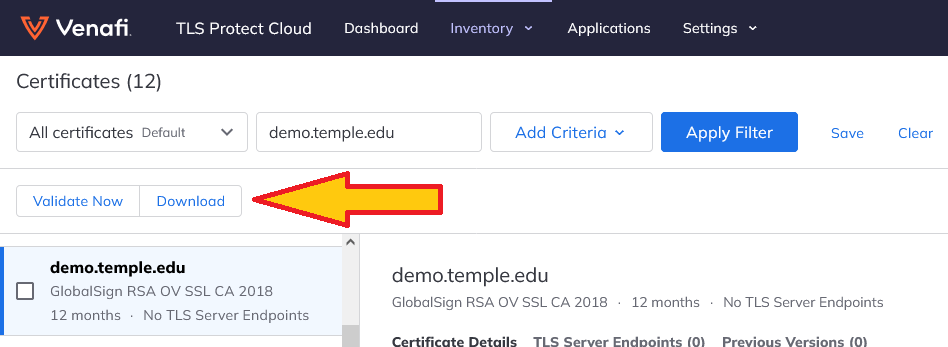

Where to download your certificate.

You’ll be presented with two options: Certificate only or Keystore.

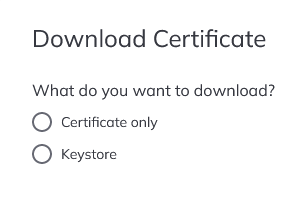

The two main download options.

Problem: I cannot choose the Keystore option when downloading the certificate.

Certificate only. Chose this option ONLY if you need the certificate and nothing more. This option is useful if:

You did not choose "Venafi automated certificate request" when creating the new certificate request.
You already have the Certificate Signing Request (CSR) and private key stored somewhere, or
If a Vendor created the CSR for you.

NOTE: If you have lost your private key then you must request a new certificate!

PEM (End entity only) -- this is just your certificate.
PEM full chain (EE first) -- this contains your certificate followed by the Intermediary and Root certificates in a single file.
PEM full chain (root first) -- the reverse order of the three certificates in a single file.

Keystore. This option is more of a misnomer as it does not apply strictly to keystore-based webservers. There are three exporting options.
NOTE: All the following exporting options require a passphrase to encrypt the private key. This passphrase will be used on the web server. If you lose or forgot this passphrase, simply re-download the certificate and choose a new passphrase. No need to re-request a certificate.
- PEM -- Possibly the best option to go with. Choosing this option will download a ZIP file containing SIX files:
  - Your certificate
  - Root and Intermediary certificate
  - Intermediary certificate
  - 2 PEM-formatted files containing all 3 certificates, concatinated, but in different sequence: Root certificate first or Your certificate first.
  - Your encrypted private key
  The Certificate Signing Request (CSR) is not downloadable through Venafi, nor would it be needed.
  Users who work with standard Apache httpd, nginx, or the F5 load balancer will want this download option.
- PKCS12 -- A binary .P12 file, also known as a PFX file. Select this download option if you are working with a Windows IIS server or Azure cloud.
- JKS -- A binary file for use in Java KeyStore-based webservers. In addition to setting a passphrase for the private key, another passphrase is required for the keystore itself. Apache Tomcat requires this format.

TLS Server Endpoints

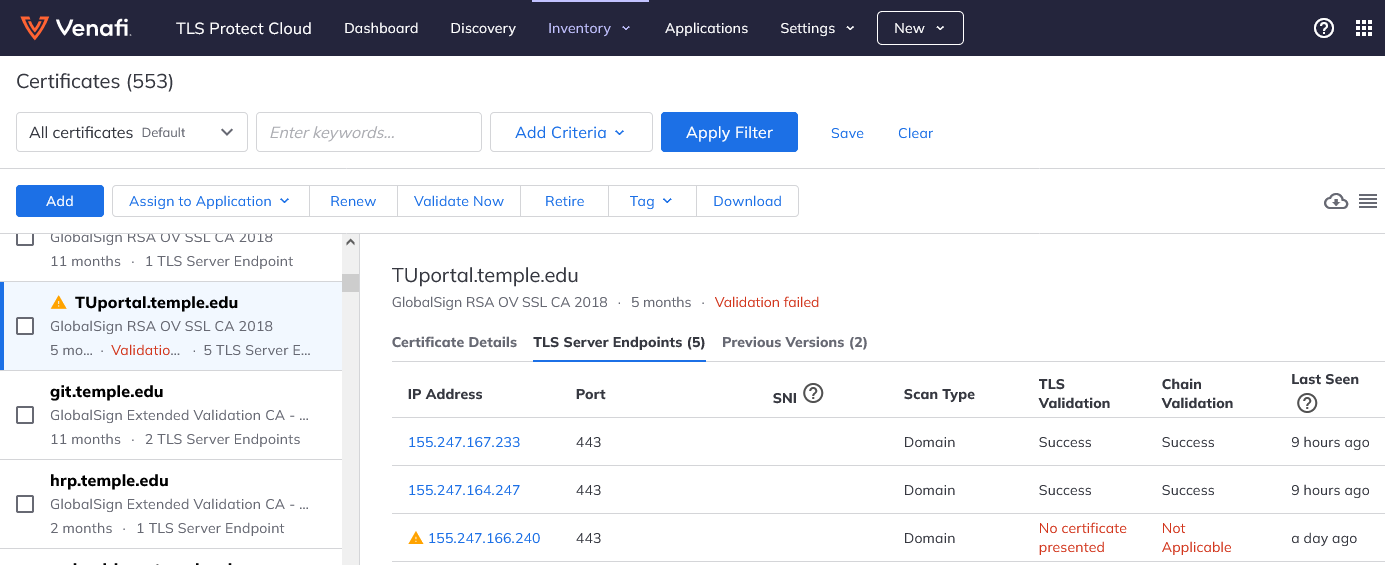

This page lists all the certificates Venafi is aware of, what IP address(es) and port(s) a certificate is/are attached to, what hostname(s) are using that certificate, how long ago that certificate was queried, and any possible problems associated with that certificate.

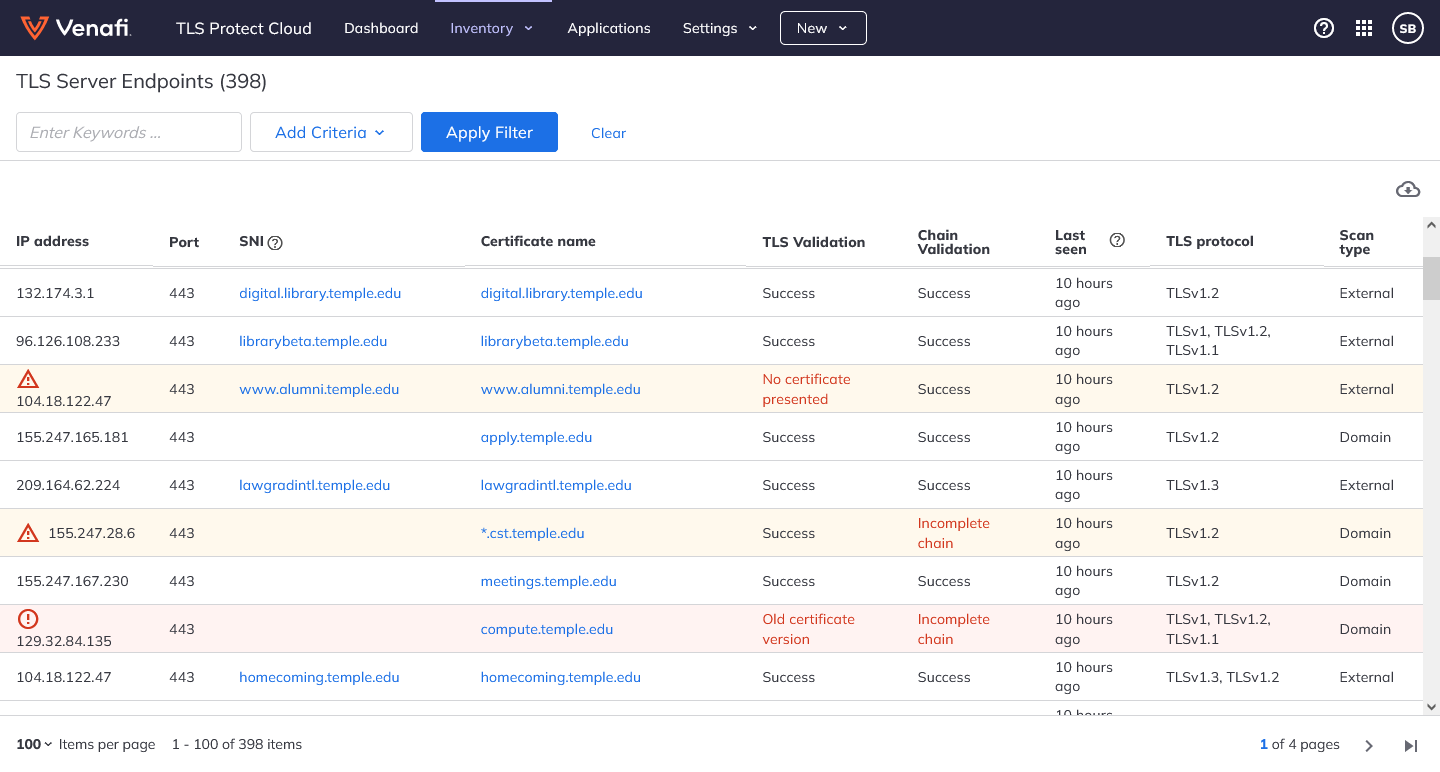

TLS Server Endpoints.

Trusted CA Certificates

If you want to check on the validity of any Certificate Authority or download that CA’s Root certificate, you can do so from this page.

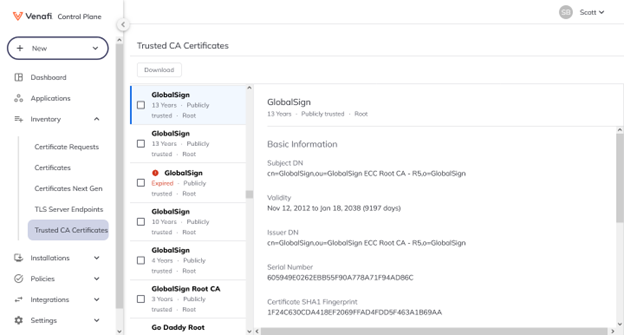

Trusted CA Root certificates.

Policies

Issuing Templates

You can view the types of Templates that have been created by a System Administrator. Clicking on a Template’s name will provide much more in-depth information about the it, including which Certificate Authority is being used, the default (pre-populated) fields for the Certificate Signing Request, key algorithms to select from, and what email address notifications should go to.
Only a person with the System Administrator user role can create, delete, or update Issuing Templates.

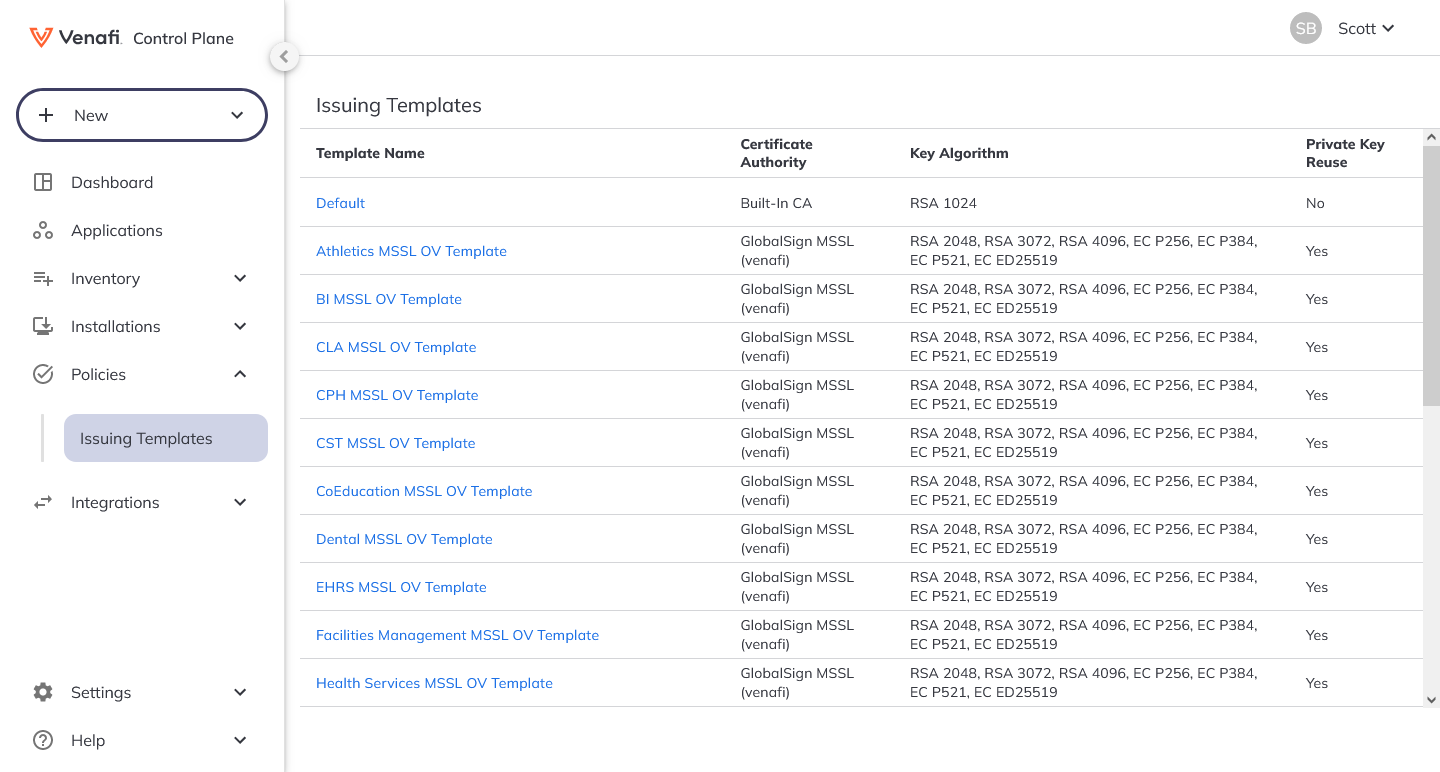

Issuing Templates.

Settings

Event Log

View or filter the events that have occurred for our Organization. Want to know who requested, assigned, retired, or tagged a certificate? You can check the logs here.

Licensing

A brief overview of the number of licenses consumed across the subscription term.

Service Accounts

No information available at this time.

Teams

A list of all teams in our tenant. Created to organize our users. A team has ownership over an Application.

Users

A list of all the users who have access to this website, and what level of access they have.

Account Settings

Left-click on your name in the uppper-right of the website.

Preferences

This is where your API key information resides. If you want to automate certificate renewals you'll need this key. Official documentation: https://developer.venafi.com/tlsprotectcloud.

For users whose user role is not Guest, you can also setup email Reports which give you a digest of what certificates are about to expire, or what problems have been encountered with a web server. Reports can be sent daily, once-to-several times a week or disabled.

NOTE: It is highly recommended that you enable and configure the "Applications Certificate Expiration Digest" so that you know when your certificates are expiring.
Then look for emails from notifications@venafi.cloud with subject "Certificate Expiration Summary".

Sign out

Note that signing out does not actually sign you out of Venafi because of the active SSO connection with Microsoft Azure. To truly log out of Venafi you would have to completely close out your browser.

Regarding our Certificate Authority

GlobalSign

Our primary Certificate Authority (CA) is GlobalSign; specifically known as "GlobalSign MSSL". Currently, our Venafi tenant is only setup to work with traditional certificates and not ACME certificates, but adding GlobalSign ACME automation is on the roadmap. We might be able to add other CAs into Venafi to streamline future requests.

Processing turnaround time

Once a request for a certificate has been made through Venafi, it takes about 5 minutes (on average) for GlobalSign to issue the certificate. You may (or may not) receive an email directly from GlobalSign when the certificate is ready, so just keep checking the Certificate Requests page for a status update.

NOTE: If you have not received your certificate within 15 minutes, please contact us so that we can investigate the delay.

Updating External Sources

In our environment there are two external sources, outside of the webserver itself, where the certificate would need to updated: Azure and the F5 load balancer.
There's a good possibility that your certificate would need to be updated in one or both of these locations. If you require this sort of update, please open up a Remedy/Helix ticket.
If you chose a "Venafi automated certificate request" then you do not need to forward off your certificate and private key; your certificate can be downloaded by the appropriate System Administrator.

Chargeback Rates

The cost of SSL certificates can be found at https://its.temple.edu/rates.

As of July 1st, 2023, there is no charge for ordering GlobalSign certificates. Please check the website for official updates to these rates.

Troubleshooting

Troubleshooting emails

Problem: Venafi as a Service Api Key Expiration

Explaination: Every account comes with an API key to automate interfacing with Venafi. Most of us are not utilizing Venafi's API, so you can ignore this email.

Problem: You received an email from GlobalSign about your certificate expiring.

Reason: The problem stems from how these GlobalSign orders are placed now that Venafi is involved.
In the past, all of the renewals were done directly through GlobalSign and they tracked the new cert as a replacement for the expiring cert thereby suppressing the reminder emails.
Now, that tracking is lost because Venafi always places new orders with GlobalSign and has no context of renewal orders.

Problem: I was not notified that my certifcate was about to expire!

Possible cause: Check your account preferences. Under Reports is the "Applications Certificiate Expiration Digest". Make sure it's enabled, an appropriate repeating schedule picked, and finally, email address(es) supplied.

Possible cause: If you cannot locate the email message, you would have to contact The Support Center (formerly the Help Desk) and request an email trace on your account.

Troubleshooting Certificate Requests

Request Error: 404 when requesting a certificate

You logged in and tried to create a new request but received a 404-error page.

A 4-Oh-4 page.

Answer

Your account still has the role of Guest. Please contact us for additional assistance.

Request Error: Parameter format check error

Failed to request certificate from GLOBALSIGNMSSL certification authority. External service responded with client error: 'Parameter format check error. Please check that the parameters match the API specification. Please review the specific ErrorMessage returned in the XML response for parameter details and consult the XML Field definitions section of the applicable API document.'

Answer

Because most of the Certificate Signing Request fields are locked down, this is error is most likely coming from the Subject Alternative Names field. Double-check that each hostname is its own separate entity, like so.

Proper SANs formatting.

If you are cutting-n-pasting entries in, make sure the hostnames are comma-separated first.

Request Error: Request failed due to the following policy violations: Unauthorized Request.

Request failed due to the following policy violations:

Unauthorized Request

Review this use-case’s security policy and change the non-conforming values so that they comply with your selected use-case’s policy and resubmit your request.

Answer

You submitted a request for a certificate that Venafi knows about, but that certificate has not been assigned to an Application.
Open a new browser tab, find the certificate from Inventory an Assign to Application.
Once completed, try re-submitting your request in the previous browser tab.

Request Error: Request failed due to the following policy violations: Distinguished name components / dNSName is invalid.

Request failed due to the following policy violations:

Distinguished name component O with value " " is invalid
Distinguished name component L with value "" is invalid
Distinguished name component ST with value "PA" is invalid
Distinguished name component OU must not be specified
SAN value " " of type dNSName is invalid

Review this use-case’s security policy and change the non-conforming values so that they comply with your selected use-case’s policy and resubmit your request.

Answer

The non-Venafi created Certificate Signing Request you are submitting contains errors and must be fixed by generating a new CSR with the correct values.

The O field, the Organization Name, is the legal name of the organization, which is either
- "Temple University" or
- "Temple University-Of The Commonwealth System of Higher Education" (no spaces around the dash), which is how we have it registered with GlobalSign.
It cannot be anything else nor left blank.
The L field must be the full name of the City, Philadelphia, not its abbrevation nor left blank.
The ST field must be the full name of the State, Pennsylvania, not its abbrevation, PA, nor left blank.
The OU field is deprecated (for security reasons) and must be empty. If your application cannot remove this field, please contact us for additional assistance.
All Subject Alternative Names (SANs) must be a fully qualified domain name (FQDN) ending in temple.edu.

As such, our Issuing Templates conform to these standards. If working with a vendor, see below for a potential workaround to this problem.

GlobalSign's requirements for CSRs.

Request Error: Request failed due to the following policy violations: Only owners of this application can request a certificate.

Request failed due to the following policy violations:

Only owners of this application can request a certifcate

Review this use-case’s security policy and change the non-conforming values so that they comply with your selected use-case’s policy and resubmit your request.

Answer

Applications are owned by Teams (using the same, if not similar, naming convention).
If your account is not a part of that Team, you cannot use that Application. Your options are:

Choose a different Application to submit your request through

Be associated with more than one Team. Please contact us for assistance, if you want this option.

Request Error: GlobalSign threw an Internal system error

Failed to request certificate from GLOBALSIGNMSSL certification authority. External service responded with client error: 'Internal system error. Please reexecute what you were doing. If error persists, please contact GlobalSign Support' Error: 11265

Answer

This could be a problem with the Key Algorithm chosen. Venafi attempted to submit the request with an algorithm that GlobalSign does not support.

Troubleshooting Certificate Renewals

Renewal Problem: The renew option "No, just renew it" is greyed out.

Possible reason:

There was a change to the Issuing Template since the certificate was issued, so a new certificate request must be created.

Troubleshooting Certificates Issued

Issuing Problem: I cannot choose the Keystore option when downloading the certificate.

Reason:

The primary reason why this option would not be selectable if Venafi did not generate the Certificate Signing Request (which the private key is tied to) for this certificate. This means that someone previously created the CSR and key and Venafi knows nothing about this data. Where is this CSR and key? Probably on the server that needs the certificate, but we do not know.

The secondary reason why this option would not be selectable: you are not a part of the Team that owns the certificate. Certificates are assigned to an Application, which in turn are own by Teams (with a similar naming convention). Check your account under Users to see what Team you are a part of.

Feel free to contact us for assistance.

Issuing Problem: Help! I lost/forgot my private key!

You lost the passphrase to the private key and/or lost the key itself.

Potential solutions:

If the certificate was generated through Venafi:

Simply re-download the certifcate and specify a new passphrase for the private key.
- It may not be necessary to replace the certificate in all locations if it was lost in only 1 location.
- A valid certificate that's in use on a webserver is still valid until it expires.

If the certificate was not generated through Venafi:

Depending on the type of certificate, PEM -vs- PFX, it might be possible to re-export the private key. For example:
- A PFX certificate imported in Windows/IIS should be able to be exported. The private key is embedded in the PFX.
- Standard Apache httpd usually has the private key in a separate file and the passphrase is entered in at service startup.
- If you have the certificate in multiple formats (PEM, PFX, etc), it might be possible to extract the private key using the openssl command (standard installation on all Linux machines).

At worst ...

A lost private key means the certificate cannot be used, and you'll have to request a brand new certificate. If chargebacks are in effect, an additional cost could be incurred.

Request Error: The vendor's Certificate Signing Request is not accepted.

Reason:

Venafi keeps rejeecting the vendor's Certificate Signing Request because of a failed policy violation.
Have Venafi create the CSR so that the request conforms to our standards and gets you the certificate you need, then continue with the addtional steps below to solve this issue.

Issuing Problem: The vendor’s private key does not match the certificate that was issued.

Reason:

When the certificate was requested, someone opted to use a different CSR (or a Venafi-generated certificate request) instead of the Vendor-supplied CSR.
Make a note in your own documentation or use the tag "Use external CSR not a Venafi-generated CSR" to remind yourself and anyone else for future reference which type of CSR to use.

To solve this issue

Download the certificate using the "Keystore" option, followed by the "PEM" option. The correct private key will be inside of the ZIP file.
Securely send that ZIP file, plus the passphrase you entered (inside of a TXT file), to the vendor (possibly via TUSafesend) and they should be good to use the certificate.

Please contact us if you need additional assistance, including if you need the Certificate Signing Request that Venafi generated.

Issuing Problem: I cannot find my certificate in Venafi.

Reason:

There could be a few reasons why you cannot find your certificate in Venafi:

Make sure you change the drop-down default of "My certificates" to "All certificates".
Is the FQDN/hostname actually an alias (or Subject Alternative Name) of another certificate? Venafi does index SANs for searching, but perhaps the hostname is not quite right (missing "tu" or a need to add it).
Our on-campus Venafi collectors might not be able to query your website; therefore, unable to index your certificate.
The best we can do is to search for your certificate through GlobalSign's website and attempt to locate it ourselves in Venafi. Please contact us for assistance.

Issuing Problem: I need to add/remove additional hostnames to my certificate.

Reason:

Venafi has no method on their website to add or remove Subject Alternative Names to an existing certificate. However, it is possible for a GlobalSign Administrator to make this sort of change.

The people within ITS who are GlobalSign Administrators are not necessarily the same as the Venafi Administrators.

If this needs to be performed, please use the Contact Information above. If you want to consolidate multiple hostnames into one certificate, feel free to reach out to us to consider.

Issuing Problem: Unable to download certifcate because: Error: Dispatch has not been set.

The full error message is:

Problem: Unable to download certifcate because: Error: Dispatch has not been set. Check the state initalization to make sure that it is being set correctly.. Please try another download option

Reason:

We don't have a good reason at this point as it's seemingly a rare event. The issue was first discovered in October 2024 and brought up to Venafi personnel, but the only information they could give is that it's a Venafi developer error and not something that an end-user is supposed to see.

If you encounter this error please contact us and provide the following information so that we can send it back to Venafi:

The name of the certificate.
The browser you are using, including version number.
What extensions are installed on this browser?
Did you experience the same error in incognito mode?
Have you tried another browser, and were you successful in downloading the cert or did it fail?
Finally, is there anyone else who could download the certificate successfully? (Maybe it's an account problem, not a browser problem.)

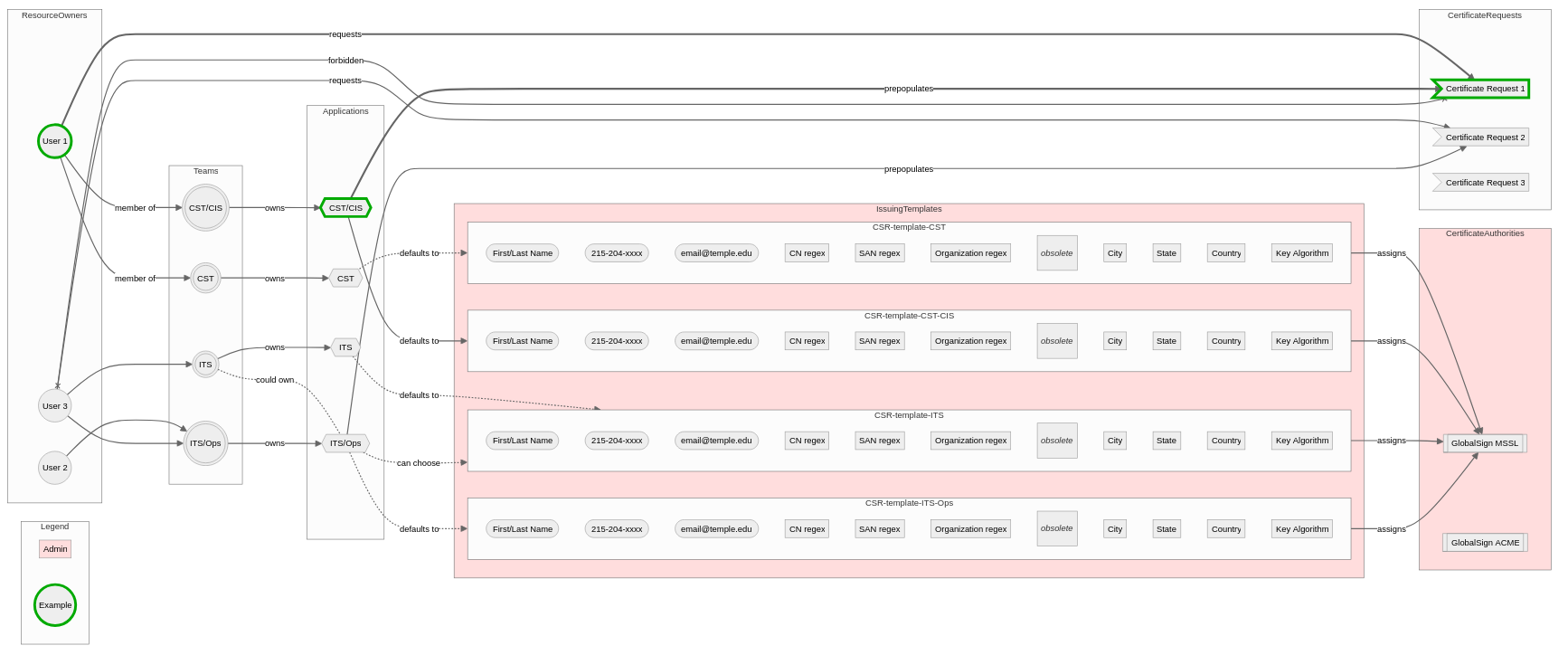

Flowchart

Represents the whole Venafi process. Using User 1 (green circle) as the example, observe the following:

User is a Resource Owner.
Is a member of two Teams: CST and CST/CIS (green hexagon).
Can request a certificate for either Team they are a member of, in this example for CST/CIS.

Teams are given ownership over one (or more) Applications. Usually it's a 1-to-1 ratio.

The Certificate Signing Request is based on the Application chosen.

The Application references an Issuing Template. Again usually a 1-to-1 ratio.
The Issuing Template pre-populates and locks in some of the fields required for the CSR.

The CSR is then submitted to the Certificate Authority, defined by the Isssuing Template, for processing.

I want to make this image even larger, but for now, right-click to see the image full size.
A flowchart of the Venafi process.

image source
